型号：20201-20269 |
FlashLink & FlashLink
Pro Data Loggers
|
Model
No.'s 20201-20269 |
|
Save yourself the time and hassle
of manually recording the air temperature and humidity levels
in your coolers or storage rooms by using the reusable FlashLink
Data Logger or FlashLink Pro Data Logger. The FlashLink Pro
has an LCD screen that lets you view current temperature, while
the internal microprocessor memory does the temperature recording
for you. Reviewing the data is simple and easy. Record and archive
the temperature data of your perishable products as they are
shipped on your internal fleets from the DC to the retail facility,
to gain additional control of temperature information and logistics
issues during distribution.
The FlashLink and FlashLink Pro are re-usable, card-deck sized
electronic data loggers. They come in a variety of temperature
and temperature/humidity models with combinations of internal
and external probes with temperature-resistant PVC or Teflon
wires.
|
FlashLink&FlashLink Pro Data Loggers
Model No. 20201-20269
FlashLink Data Logger (2 probes)
Model No. 20204 |
The FlashLink and FlashLink Pro Data Loggers are housed
in a shock-resistant, waterproof case to withstand rugged and
wet environments. A green LED indicator flashes when the logger
is active, and a red LED indicator flashes when alarm conditions
occur, alerting you to out-of-range conditions.
The FlashLink Program Manager software (software sold separately)
is a very user friendly and feature- packed program. Programmable
features include logging intervals from 3 seconds to 24 hours,
high and low alarm settings, adjustable alarm delays, delayed
start from 0 seconds to 256 days, and a manual start button.
Recorded information includes date, time, temperature and humidity
data, with a memory capacity from 3,800 to 32,000 data points,
depending on model. FlashLink patented design downloads 3,800
data points within 5 seconds, without the need for interface
cables, by plugging directly into your parallel port or into
your serial port through an optional serial port adapter. The
easy to use software shows the recorded data in numeric or graph
formats, with customizable fields, statistical data and alarm
functions. |

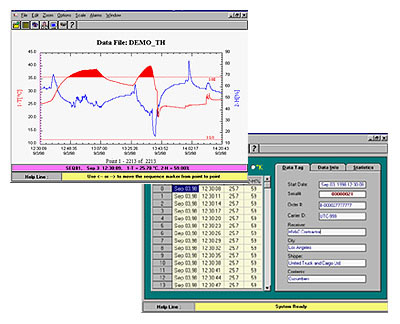

| FlashLink
Program Manager Software |
 |
| ·产品特点 |
·设计新颖，能满足各种记录需求
·操作简单，性能可靠。
·能以图表、曲线、报表等形式输出数据,并能将数据通过电子邮件传输。
·可多次重复使用。 |
| 温度范围（内置温度传感器） |
-40°F~150°F（ -40°C~ 66°C） |
| 温度范围（外置温度传感器） |
-40°F~302°F（ -40°C~ 150°C） |
| 温度范围（外置低温传感器） |
-112°F~230°F（ -80°C~ 110°C） |
| 温度精度 |
+1°F/0.5 °C -32°F~ 150°F（0°C ~66°C） |
| 其他范围 |
+2°F /1°C |
| 湿度精度 |
+5%RH （20%RH ~90%RH） |
| 工作湿度范围： |
1%RH ~99%RH |
| 温度分辨率： |
0.1°F/°C |
| 数据存储容量： |
7900~10000 组 |
| 数据下载速度 |
每5 秒下载3800 个数据 |
| 报警设置 |
上下限报警 |
| 记录采样间隔 |
3 秒~24 小时可调 |
| 延时启动 |
0 秒到256 天 |
| LED 指示灯 |
报警时红灯闪烁12 秒，绿灯表示开启 |
| 电池型号 |
CR2450 3V 锂电池, 用户可自行更换，一年使用时间 |
| 外型尺寸 |
8.3 X 5.7 X 1.9cm |
| 防水性能 |
能深入到6 英寸深度水中 |
| 证书 |
CE TUV |
| 软件 |
#20210 数据处理软件 |
| ·选型指南 |
型号：20201 单温度内置温度传感器
型号：20202 一内置温度传感器和一外置温度传感器
型号：20203 内置温湿度传感器
型号：20204 两个外置探针式温度传感器
型号：20205 一外置探针式低温传感器
型号：20209 一外置探针式温度传感器 |
|
